A nozzle clog rarely begins at the moment your printer stops extruding. By the time you hear extruder clicking, see thin inconsistent lines, or find gaps in the top layers, the restriction has usually been building for several minutes or several prints. Understanding what causes nozzle clogs helps you fix the actual source instead of repeatedly changing nozzles and hoping the next print works.
A clog can be complete, where no filament comes out at all, or partial, where extrusion continues but becomes weak and uneven. The difference matters. A complete clog may point to a blocked nozzle or a severe filament path issue, while a partial clog is often related to temperature, contamination, excessive flow demand, or a developing heat-creep problem.
What Causes Nozzle Clogs Most Often?
Most nozzle clogs come down to one of three problems: filament is not melting consistently, molten filament is solidifying where it should not, or foreign material is entering the melt path. The printer, filament, slicer profile, and maintenance routine all affect those conditions.
Printing Too Cold
A nozzle needs enough heat to melt filament fully before the extruder pushes it through a small opening. If the nozzle temperature is too low, the filament becomes soft but remains too viscous to flow reliably. Back pressure rises, extrusion becomes inconsistent, and the drive gear may start grinding a notch into the filament.
This is especially common when moving to faster print speeds without increasing temperature. A PLA profile that works well at 50 mm/s may struggle at 150 mm/s because the hot end has less time to transfer heat into the material. High-speed PLA can help, but it still needs a temperature and flow rate that match the printer.
Do not assume the number printed on the spool is the only correct setting. That range is a starting point. Run a temperature tower or make small adjustments in 5-degree increments while watching for smooth extrusion, clean layer bonding, and controlled stringing.
Excessive Volumetric Flow
Even at the right nozzle temperature, a hot end can melt only so much plastic per second. When layer height, line width, and print speed demand more material than the hot end can process, the extruder pushes against increasing resistance. This can look exactly like a clog.
For example, changing from a 0.4 mm nozzle to a 0.6 mm nozzle allows wider lines, but it also requires substantially more molten filament. The same applies when using thick layers for fast functional parts. Lower the print speed, reduce layer height or line width, raise temperature within the filament's safe range, or use a hot end designed for higher flow.
Heat Creep Above the Heat Break
Heat creep happens when heat travels upward from the heater block into the heat break and cold side of the hot end. Filament starts softening too high in the filament path, expands, and sticks before it reaches the melt zone. PLA is particularly prone to this because it softens at relatively low temperatures.
A weak hot-end fan, dust-clogged heatsink, loose fan connector, or incorrect fan orientation can trigger heat creep. It can also happen when a printer sits at temperature for a long time without printing. The filament remains stationary, absorbs heat above the nozzle, and may form a plug when the print resumes.
Check that the hot-end heatsink fan runs whenever the hot end is hot. This is different from the part-cooling fan, which is controlled by the slicer and cools the printed plastic. The heatsink fan must provide steady airflow to keep the cold side cold.
Retraction Settings That Are Too Aggressive
Retraction reduces stringing by pulling filament back during travel moves. Too much retraction, however, can pull softened filament into the cooler heat-break area. There it may swell, harden, and create a restriction.
Direct-drive printers generally need short retraction distances. Bowden setups need more distance because of the longer path between extruder and nozzle, but they can still clog if the setting is excessive. If clogs occur after frequent travel moves, on detailed models, or near the end of long prints, reduce retraction distance first. Retraction speed may also need to come down if the extruder is pulling hot filament back too quickly.
Moisture-Damaged Filament
Wet filament does not always create a hard clog, but it can cause unreliable extrusion and leave burnt or degraded residue in the nozzle over time. Moisture turns to steam in the hot end, producing popping sounds, rough surfaces, bubbles, and weak layer bonding.
PETG, TPU, nylon, and many specialty filaments absorb moisture quickly. PLA can also become wet in humid storage conditions. A filament dryer is often more useful than raising nozzle temperature, since hotter wet filament can increase bubbling and stringing rather than solve the problem.
Dry material before diagnosing a suspected clog, particularly if the spool has been left exposed, is several months old, or shows audible popping during extrusion. Store opened spools in sealed containers with fresh desiccant once they are dry.
Dust, Debris, and Contaminated Filament
The nozzle opening is small. A standard 0.4 mm nozzle can be blocked by dust, a fragment of old filament, residue from a previous material, or particles in a specialty-filled filament. Filament routed through an uncovered spool holder can collect dust before it enters the extruder. Worn PTFE tubing can also shed small particles into the path.
Wood-filled, glow-in-the-dark, carbon-fiber-filled, and glitter materials need extra attention. Some are abrasive, some contain larger particles, and some benefit from a larger nozzle. A 0.6 mm hardened nozzle is often a better choice for filled materials than forcing them through a standard brass 0.4 mm nozzle.
Use a simple filament filter or foam wiper before the extruder, keep loose spools covered, and purge thoroughly when changing between materials. Switching from TPU to PLA, for example, is not always as simple as loading the next spool. Purge until the new filament exits in a clean, consistent strand.
Mechanical Issues That Look Like a Clog
Not every extrusion failure is inside the nozzle. Before disassembling the hot end, inspect the filament path and extruder.
A dirty or worn drive gear can slip on the filament and produce clicking. An idler tension setting that is too loose will not grip reliably, while too much tension can crush soft filaments such as TPU. A tangled spool can create enough drag to stop feeding. Bent filament entering the sensor or extruder at a sharp angle can also add resistance.

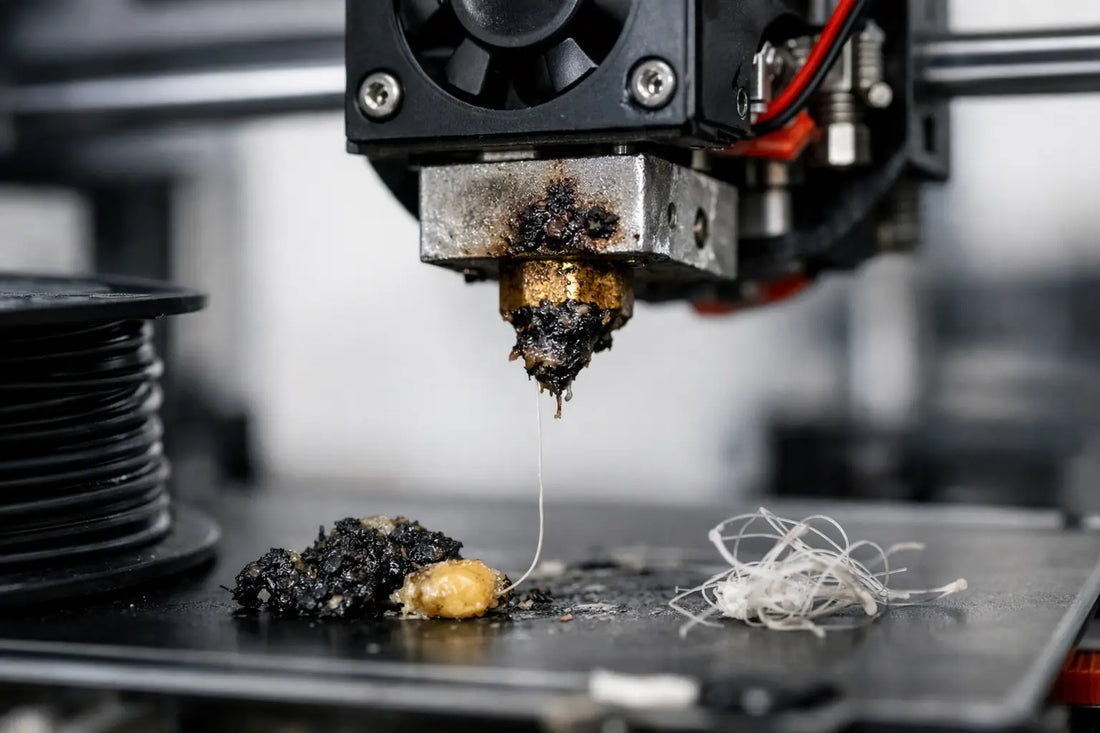

Check the hot end assembly as well. In PTFE-lined systems, the tube must sit firmly against the nozzle or heat break. A small gap creates a pocket where molten filament collects, burns, and eventually blocks the path. Signs include dark debris in purged filament, recurring clogs after replacing the nozzle, or a blob of material around the heater block.
Nozzles themselves wear out. Brass nozzles gradually enlarge when used with abrasive filaments, while the internal surface can become rough or coated with residue. Wear more often causes poor print quality than a true blockage, but a damaged nozzle is inexpensive compared with the time lost troubleshooting it.
How to Identify the Source Before Replacing Parts
Start by observing when the problem occurs. If extrusion fails immediately after loading a filament, inspect the spool, loading path, and nozzle temperature. If it fails after an hour or two, look at heat creep, retraction, and excessive flow. If it appears only with one material, focus on that material's moisture level, recommended temperature, and particle content.
Heat the nozzle to the normal printing temperature for the loaded filament and manually extrude slowly. A smooth, straight strand suggests the nozzle may be clear and the issue could be speed, retraction, or the extruder. A curling, thin, or intermittent strand points toward a partial blockage. If no filament moves and the extruder slips, unload the filament and inspect the tip for a swollen section that may indicate heat creep.
A cold pull can remove residue from many partial clogs. Use a filament suited to the process, heat the nozzle enough to load it, allow it to cool to the appropriate pull temperature, then pull it out in one steady motion. The removed tip can reveal dark deposits or particles. If cold pulls do not restore consistent flow, remove and inspect the nozzle rather than increasing extruder force.
Prevention Starts With the Right Print Setup
Reliable extrusion is mostly routine. Keep filament dry and clean, confirm that cooling fans work, use a realistic flow rate for the hot end, and tune retraction only as far as necessary. Match the nozzle material and diameter to the filament instead of treating every spool like standard PLA.
For routine PLA and PETG printing, a clean 0.4 mm nozzle is a practical default. For abrasive or particle-filled materials, use a hardened nozzle and consider moving to 0.6 mm. For flexible TPU, slow down, reduce retraction, and make sure the filament path is well constrained from spool to extruder.
When a clog happens, avoid forcing filament through with maximum extruder pressure. That can strip the filament, damage gears, or push molten plastic into areas where it does not belong. A few careful checks of temperature, cooling, filament condition, and flow demand will usually get the printer back to making clean, dependable parts. Keeping a spare nozzle and dry, well-stored filament on hand makes that recovery much faster.
