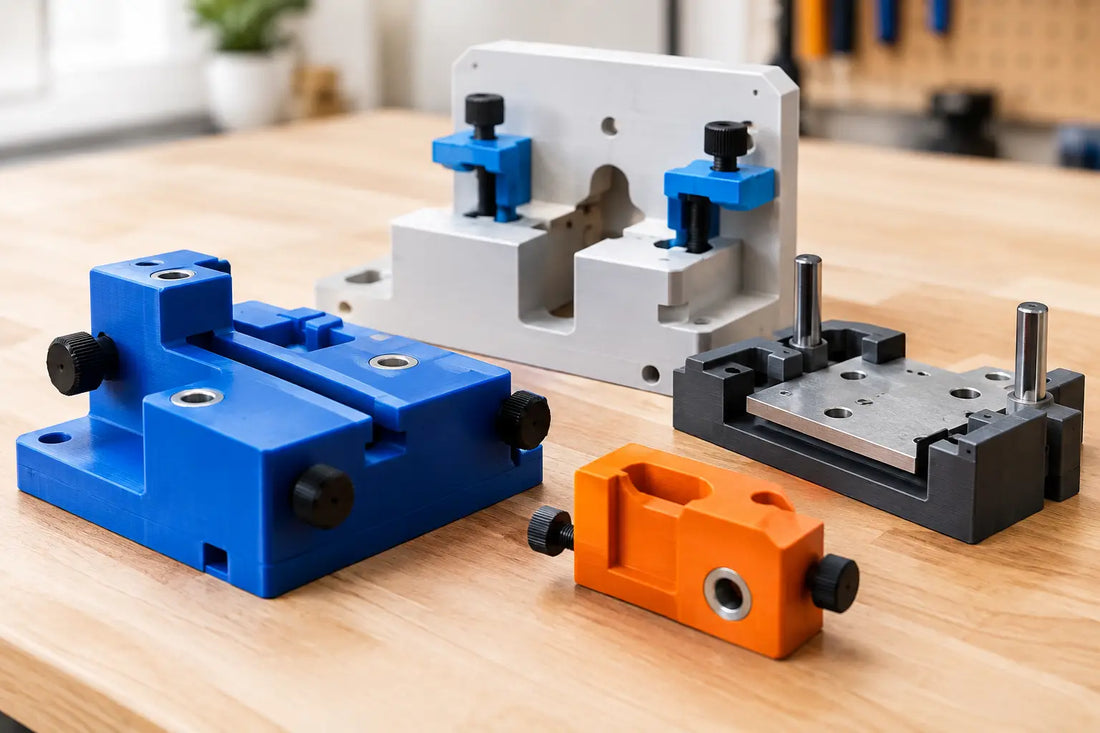

A good jig does not need to look complicated to save real time. The best custom printed jigs examples solve one repeatable problem: they put a part, tool, or label in the same place every time. For hobby shops, classrooms, repair teams, and small production runs, that can mean fewer measuring errors, faster assembly, and less material wasted on avoidable mistakes.
3D printing is particularly useful when a commercial jig does not fit the job, costs too much, or needs to be adjusted quickly. The right design still matters. A printed guide that flexes, wears out, or traps chips can create more problems than it solves.
Custom Printed Jigs Examples That Earn Their Place
The most practical jigs are usually built around a specific motion or decision. They guide a drill, locate a workpiece, confirm a part is correct, or hold an item steady while another operation happens.
Drill guides for repeatable holes
A drill guide is one of the clearest examples of a useful printed jig. It can index off an edge or corner of a wood, plastic, or aluminum part and position holes at a consistent distance. Cabinet builders may use one for shelf-pin holes. Makers may use one to drill mounting holes in enclosures, panels, or brackets.
For occasional use in wood or plastic, a thick PLA+ body can work well. If the drill bit contacts the printed hole directly, however, the hole will wear and grow. A better approach is to design the jig around a metal drill bushing. The printed part handles locating and support, while the bushing takes the wear from the bit. PETG is also a sensible choice when the guide may see shop heat, moderate impacts, or rougher handling.
Assembly nests and alignment fixtures
An assembly nest holds a part in one known orientation while components are installed. Think of a tray that supports a small electronics enclosure while screws are driven, a cradle that positions a handle for adhesive bonding, or a fixture that keeps several printed parts aligned during assembly.
These are especially useful when the object has curved surfaces or cannot sit flat on a bench. Rather than asking an operator to hold a part steady and judge alignment by eye, the nest establishes the position mechanically. Add pockets for hardware, clearance for fingers, and openings beneath screw locations when possible.
A printed nest does not always need high strength. Its value is often in fit and repeatability. PLA+ is a cost-effective first choice for indoor assembly aids, while PETG is better for jigs that may be cleaned, bumped, or left in a warmer workspace.
Inspection gauges and go/no-go checks
Inspection jigs turn a slow measurement task into a fast pass-or-fail check. A simple gauge might verify whether a tab is too wide, a hole is in the correct location, or a finished part fits inside an allowable envelope. A go/no-go gauge has two sides: one side should fit if the part meets the minimum condition, and the other should not fit if it exceeds the maximum condition.
These jigs work well for small batches where using calipers on every part would slow production. They are also useful for sorting mixed components or checking incoming parts before assembly. If accuracy is critical, print test pieces first and compensate for your printer's dimensional behavior. A nominal 10 mm opening may not print at exactly 10 mm without clearance adjustments.
For a gauge that will be handled frequently, PETG offers better durability than standard PLA. If the gauge needs flexibility, such as a snap-on check fixture, TPU can be useful, but its dimensional behavior and soft edges make it a poor choice for many precision checks.
Router, trim, and marking templates
Custom templates help transfer a shape or location onto a workpiece. A printed router template can guide a bearing bit around a small profile. A marking jig can place the same hole pattern, cut line, logo location, or hardware position across multiple parts.
The trade-off is wear resistance. A thin printed edge is not a long-term substitute for a metal template in a high-volume woodworking operation. For light use, a thick PETG or PLA+ template can be effective. For repeated routing, consider using the printed part as a master to create a tougher template, or reinforce the contact points with metal hardware. Keep the router bearing away from weak seams and orient the print so layer lines do not split at the guide edge.
Packaging and labeling aids
Not every production jig touches a tool. Packaging aids can hold an item while a label is applied, position a box insert, or create a repeatable fold location for small cartons. A simple printed tray can keep products facing the same direction during packing, reducing handling time and making a small batch look more consistent.
This is a good example of where a low-cost printed solution often makes sense. The jig may only need to last through a product run, and it can be revised quickly when packaging dimensions change. For lightweight items, PLA+ is usually sufficient. Use PETG if the fixture will be wiped down regularly or used in a warehouse area with variable temperatures.
Design Details That Separate a Useful Jig From a Frustrating One
Start with the datum surfaces: the edges, holes, or faces that determine how the workpiece is positioned. A jig cannot be more repeatable than the surfaces it references. Choose stable features that are easy for the user to find and seat against, then build the rest of the design from those points.
Clearance is the next decision. A locating pocket designed at the exact CAD dimension may be too tight after printing. For general fit-up, start with a small amount of clearance and test it on the actual printer and material. Parts affected by first-layer spread may need chamfers at the bottom of pockets. Tall locating walls may need lead-in angles so the part drops into place rather than catching on an edge.
Do not rely on printed threads or friction alone where a jig sees repeated force. Heat-set inserts, machine screws, magnets, dowel pins, and metal bushings can extend service life significantly. A printed body combined with a few standard hardware components is often more economical than machining a complete fixture from aluminum.
Ergonomics matter as well. Add a handle when the jig needs to be moved often. Leave finger access around the workpiece. Use open areas for chip evacuation if drilling or sanding is involved. If a fixture needs to sit on a bench without sliding, recesses for rubber feet can make a noticeable difference.
Choosing Filament for Printed Jigs
Material selection should match the job, not just what is currently loaded in the printer. PLA and PLA+ are easy to print and rigid enough for many alignment, assembly, and light inspection jigs. Their limitation is heat resistance. A PLA jig left in a hot vehicle or used near warm equipment can soften or deform.
PETG is a stronger all-around choice for shop fixtures that need better impact resistance and temperature tolerance. It is often a practical upgrade for drill guides, assembly nests, and reusable packaging fixtures. It can be slightly less rigid than PLA+, so very thin features may flex more than expected.
ABS and ASA are better suited to warmer environments or outdoor use, but they demand more controlled printing conditions. ASA is useful for jigs exposed to sunlight. TPU is best reserved for protective grips, soft locating features, and non-marring contact pads. A rigid jig with a TPU insert can protect finished surfaces without sacrificing positioning accuracy.
For local makers and small businesses that need a finished fixture but do not want to manage iteration and production alone, KJI 3D can help supply practical materials or produce the printed components. The key is providing the actual part dimensions, intended use, expected quantity, and any hardware that will be installed.
Test the Jig Before Committing to a Run
Print a short section, a single pocket, or a simplified version before running a full-size jig. Check the fit with the real workpiece, not only the CAD model. Test the motion the jig is meant to control: drill through it, seat the part repeatedly, apply the expected clamping force, or run several packing cycles.
This step catches the details that look minor on screen but matter at the bench, such as a handle blocking access to a screw, a pocket collecting debris, or a locating tab that is too tight after several uses. Small revisions are normal. The advantage of printed tooling is that those revisions are affordable and fast.
The right jig should make correct work easier than incorrect work. Start with the one operation that gets repeated often, measured twice, or occasionally done wrong. That is usually where a custom print pays for itself first.
