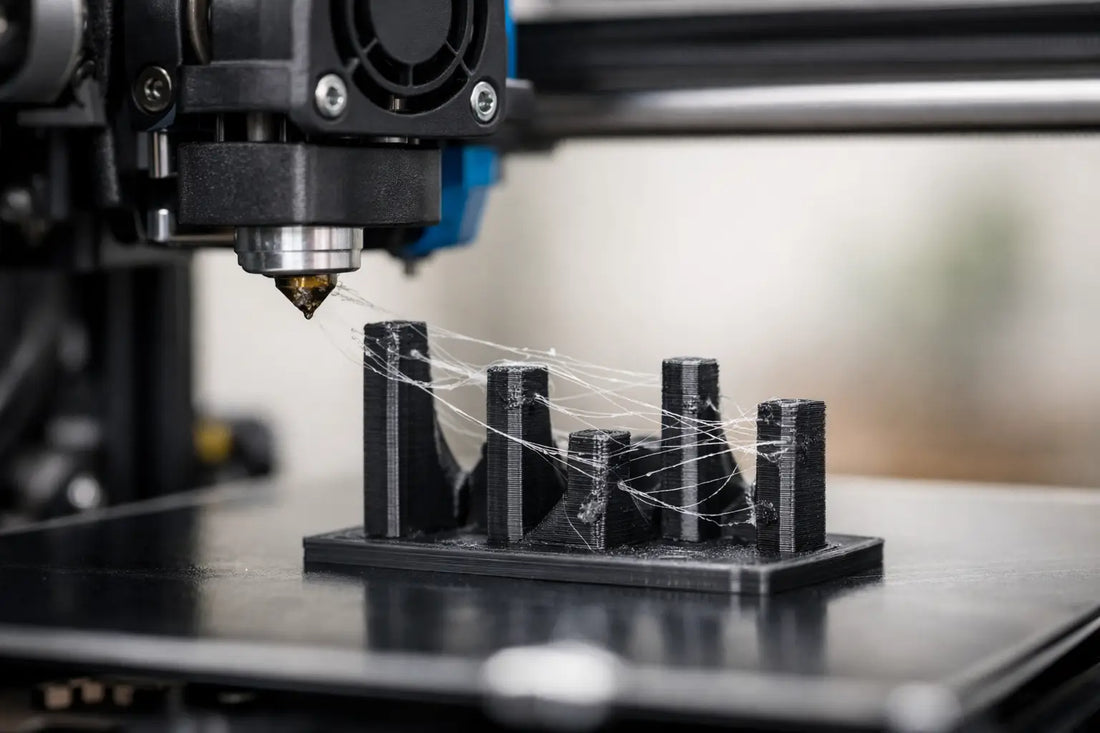

You finish a PETG print, pull it off the bed, and there it is - fine hairs between gaps, sticky webs around travel moves, and little blobs where the nozzle paused. If you have been asking why is petg stringing, the short answer is that PETG stays tacky and fluid over a wider range than PLA, so small setup errors show up fast.
That is also why PETG can be so useful. It is tougher than basic PLA, handles functional parts well, and generally gives better heat resistance. The trade-off is that it asks for tighter control over temperature, moisture, travel behavior, and cooling. Stringing is usually not one single problem. It is a stack of small issues adding up.
Why is PETG stringing more than PLA?
PETG naturally wants to ooze. Compared with PLA, it tends to remain softer in the melt zone and stretch into thin strands as the nozzle moves across open space. That behavior is normal to a point. The question is not whether PETG can string, but why your machine is producing more of it than it should.
Most of the time, the biggest causes are nozzle temperature that is slightly too high, filament that has absorbed moisture, and retraction settings that are not tuned for your extruder setup. Travel speed, cooling, print speed, and even nozzle cleanliness can push the result from acceptable to messy.
If your print has only a few light hairs, that is common PETG behavior. If it looks like a spider moved in, something needs adjustment.
The most common reason: temperature is too high
PETG often prints in a broad range, but broad range does not mean every point in that range performs equally well. A spool may list 230 to 250 C, yet the cleanest result on your machine might be 235 C while 245 C produces constant stringing.
When the nozzle is too hot, PETG flows too easily during non-print moves. Even good retraction cannot fully control it because the material remains so liquid that pressure rebuilds quickly. This is where many users get stuck. The print may look well-layered at a higher temperature, so they assume temperature is correct, but the extra gloss and smoothness can come with more strings and zits.
The practical fix is to lower nozzle temperature in small steps, usually 5 C at a time, until stringing drops without causing weak layer bonding or rough extrusion. PETG rewards small changes. Big jumps can hide the real sweet spot.
Watch for false positives
If you lower temperature too far, stringing may improve but layer adhesion can suffer. That matters on brackets, enclosures, and any part that takes load. Cleaner is not always better if the part becomes brittle or under-fused.
Wet filament makes PETG stringing worse
PETG is hygroscopic, which means it absorbs moisture from the air. Once that happens, the water in the filament turns to steam in the hot end. The result can be popping sounds, inconsistent extrusion, rough surfaces, and lots of thin strings.
This is one of the biggest reasons people ask why is petg stringing even after they already tuned retraction. They adjust settings for hours when the spool itself is the problem.
A damp spool often shows a few clues. You may hear crackling while printing. You may see random tiny blobs on the outer wall. The strings can look especially wispy and chaotic instead of just forming a few neat hairs between parts.
Drying PETG usually helps more than chasing slicer settings. A filament dryer or controlled low-temperature drying setup can bring a spool back to usable condition. After drying, store it sealed with desiccant. If your printing area is humid, this matters even more.
Retraction matters, but only if it matches your machine
Retraction pulls filament back before travel moves to reduce oozing. It helps, but PETG does not usually like aggressive retraction the way some PLA profiles do.
On a direct drive machine, too much retraction can create jams, inconsistent restart, or little divots where extrusion resumes. On a Bowden setup, too little retraction may do almost nothing. The right value depends on the extruder path length, hot end design, and print speed.
PETG usually responds best to moderate retraction, not extreme numbers. If you keep increasing retraction and the print gets worse, stop. Many users overshoot the useful range and create new problems like clogs or surface defects.
Retraction speed also matters. Too slow and the nozzle still oozes. Too fast and the filament can grind or deform, especially if the filament path is not very constrained.
Why is PETG stringing even with good retraction?
Because retraction only manages pressure. It does not solve moisture, excess temperature, or a dirty nozzle. If PETG is too hot or wet, retraction becomes a partial fix at best.
Travel settings have a bigger effect than people expect
Every time the nozzle crosses an open area, it gives PETG a chance to stretch into a thread. That means travel speed and path planning directly affect stringing.
Faster travel moves reduce the time the nozzle spends crossing gaps, which often reduces string formation. Combing and travel-within-infill options can also help by keeping motion inside the model where possible instead of dragging filament across visible openings.
There is a limit, though. If your machine is pushed too fast, you can introduce ringing, missed steps, or inconsistent motion. Like most PETG tuning, it is a balance rather than a single magic setting.
Cooling can help, but too much creates other problems
PETG usually wants less fan than PLA. That lower cooling helps layer adhesion, but it can also leave the material sticky longer, which encourages strings during travel.
A modest increase in part cooling sometimes reduces stringing, especially on small parts with repeated short moves. But running too much fan can reduce interlayer strength or hurt surface consistency. Thin functional parts can become weaker than expected.
If your current cooling is very low, it is worth testing slightly higher fan values. Just do not assume that copying a PLA cooling strategy will give good PETG results.
Print speed and flow rate can quietly contribute
PETG stringing is often blamed on retraction first, but over-extrusion can create excess nozzle pressure that keeps material leaking out during movement. If your flow rate is too high, the hot end stays more pressurized and leaves more residue at the nozzle tip.
Likewise, very slow printing can increase heat soak in the filament and make oozing worse. That is especially noticeable on small parts where the nozzle keeps returning to the same area.
Calibrating flow and using realistic print speeds helps PETG behave more predictably. If dimensions are off, corners are swollen, or top surfaces look overfilled, check extrusion calibration before spending all your time on retraction towers.
Sometimes the nozzle is the problem
A nozzle with burnt residue on the outside can catch molten PETG and drag it into strings and blobs. This is easy to miss because the print profile may be reasonable, but the nozzle tip itself is carrying sticky buildup from earlier prints.
Cleaning the nozzle exterior and checking for wear can improve print quality immediately. If you print abrasive materials regularly and then switch back to PETG, a worn nozzle can change flow behavior enough to make tuning less consistent.
Hot end condition matters too. Partial clogs, heat creep, and poorly seated PTFE in some setups can all create inconsistent extrusion that looks like a settings issue.
A practical order for fixing PETG stringing
The fastest way to solve PETG stringing is to change variables in the right order. Start by drying the filament if there is any chance it has been exposed to air for a while. Then lower nozzle temperature gradually until stringing improves without hurting layer bonding.
After that, tune retraction for your specific machine, not for a generic internet profile. Increase travel speed where your printer can handle it. Review cooling if it is extremely low, and make sure your flow rate is not excessive. Finally, clean the nozzle and inspect the hot end if the problem still does not make sense.
This order saves time because it addresses the highest-impact causes first. It also avoids a common mistake: trying to fix wet, overheated PETG with increasingly aggressive retraction settings.
What acceptable PETG looks like
PETG rarely prints as perfectly dry and crisp as a highly tuned PLA profile. A few faint hairs between isolated features can be normal and easy to remove. The goal is not always zero strings. The goal is clean enough surfaces, reliable mechanical performance, and a process you can repeat.
For production parts, consistency matters more than chasing a perfect test tower. If one PETG brand runs clean at 238 C and another needs 232 C after drying, that is normal. Material blends vary. Even colorants can shift behavior.
If you are buying PETG for functional use, it is worth treating the filament as a material system, not just a spool. Storage, drying, printer setup, and profile tuning all affect the result. That is why dependable filament and a realistic process usually beat endless slicer guesswork.
When PETG is dialed in, it stops feeling unpredictable. You get strong parts, cleaner travel moves, and far less post-processing. If your current spool is fighting you, make one controlled change at a time and let the print tell you what actually improved.
